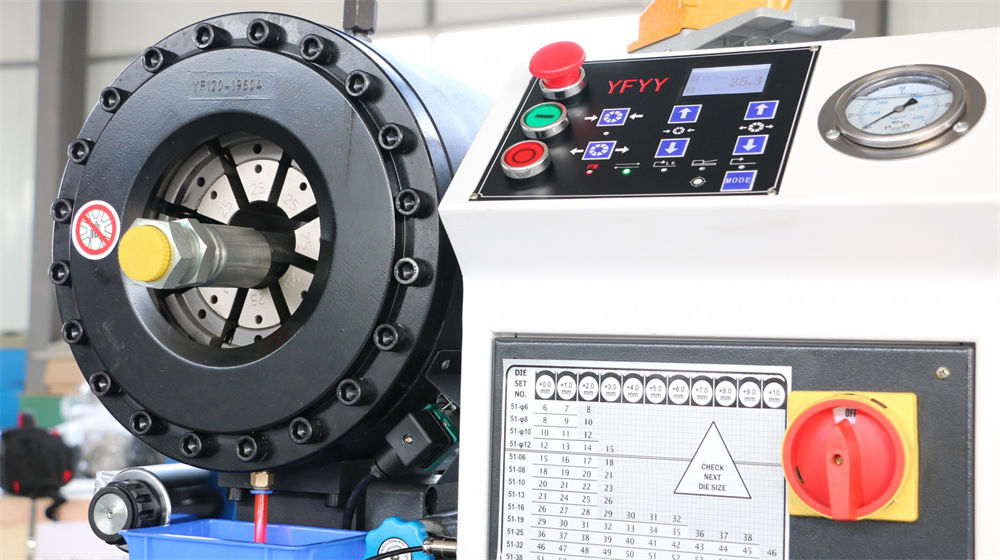

Workshop Hose Crimpers
Y120
Compact and ergonomic structure, designed for workshop or small amount production, it has adopted the advanced digital controlled operating panel for a high accuracy and improve efficiency. It mainly used in workshop for hydraulic hose assembly production and repair service for all kind of engineering machinery, such as excavator, loader, earthmover. The max. hose size up to 2 Inch 4wires, supply 200ton crimping force by a powerful motor.
Key Advantages:
1.High Crimping Accuracy. 2.Reliable and durable. 3.Crimping range from 1/4 Inch to 2 Inch. 4.Crimping force: 2000kN. 5.Siemens Motor.
Technical Specification:
|
Machine Head |
Forge Steel |
|
|
Crimping Capacity |
1/4 Inch～2 Inch |
|
|
1 Braided Wire (1SN): 2 Inch |
||
|
2 Braided Wire (2SN): 2 Inch |
||
|
4 Spiral Wire (4SP, 4SH): 2 Inch |
||
|
Max. Opening without dies |
120 mm |
|
|
Max. Moving Stroke |
+25 mm |
|
|
Master Dies Length |
80 mm |
|
|
Crimping Force |
2000kN |
|
|
Voltage |
220v～480v 1Ph / 3Ph |
|
|
Motor |
4 kw / 3 kw |
|
|
Control |
Digital Controlled Panel |
|
|
Foot Pedal |
Included |
|
|
Quick Change Tools |
Included |
|
|
Noise Level |
50 dB(A) |
|
|
Protection Class |
IP54 |
|
|
Weight |
300 kg |
|
|
L × W × H |
700 × 630 × 1300 mm |
|
|
Crimping dies |
Ø6 (1/4”) |
Length: 45mm |
|
Ø8 (5/16”) |
Length: 45mm |
|
|
Ø10 (3/8”) |
Length: 45mm |
|
|
Ø13 (1/2”) |
Length: 50mm |
|
|
Ø16 (5/8”) |
Length: 65mm |
|
|
Ø19 (3/4”) |
Length: 65mm |
|
|
Ø25 (1”) |
Length: 80mm |
|
|
Ø32 (1.1/4”) |
Length: 80mm |
|
|
Ø38 (1.1/2”) |
Length: 80mm |
|
|
Ø51 (2”) |
Length: 80mm |
|
