Fittings Nut Crimpers
NC80
Fittings nut crimping machine designed for hydraulic fittings production purpose, fast speed, high accurate machines for short crimping length and low tonnage serial production. Adjustable back stop enables quick set up for different fittings. A special centering pin, selected according to ferrule size, can be used during the crimping.
Key Advantages:
1.Mechanical back stop device. 2.Easy operation. 3.Reliable and durable.
Technical Specification:
|
Machine Head |
Forge Steel |
|
|
Crimping Capacity |
1/4 Inch～1.1/4 Inch |
|
|
Max. Opening without dies |
80 mm |
|
|
Crimping range |
Ø4～Ø65 |
|
|
Max. Moving Stroke |
+20 mm |
|
|

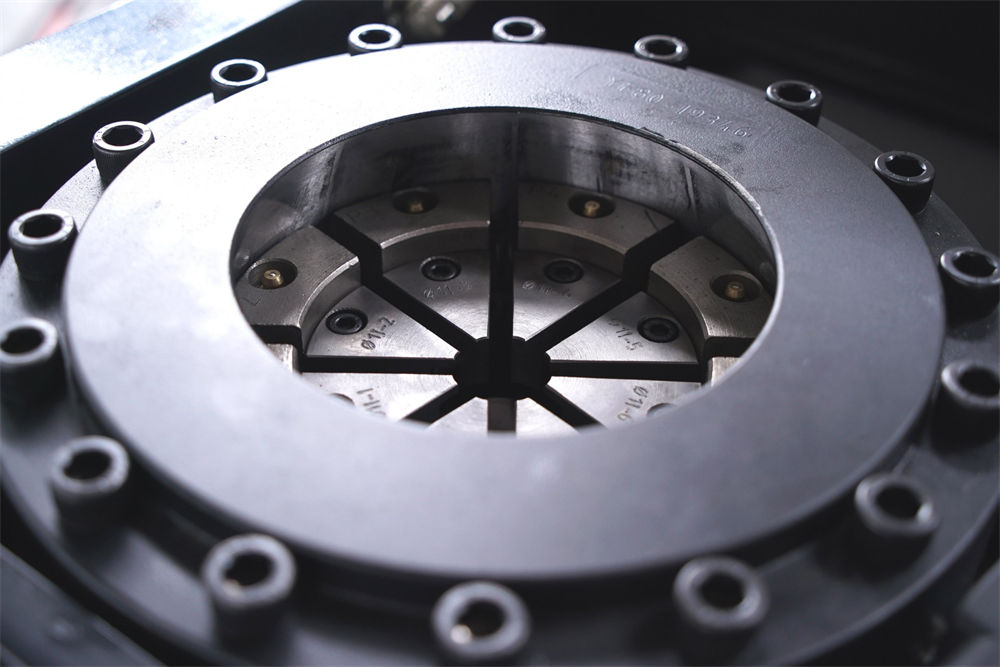

Master Dies Length |
22 mm |
|
|
Crimping Force |
1750kN |
|
|
Voltage |
220v～480v 1ph / 3ph |
|
|
Motor |
4kw / 3kw |
|
|

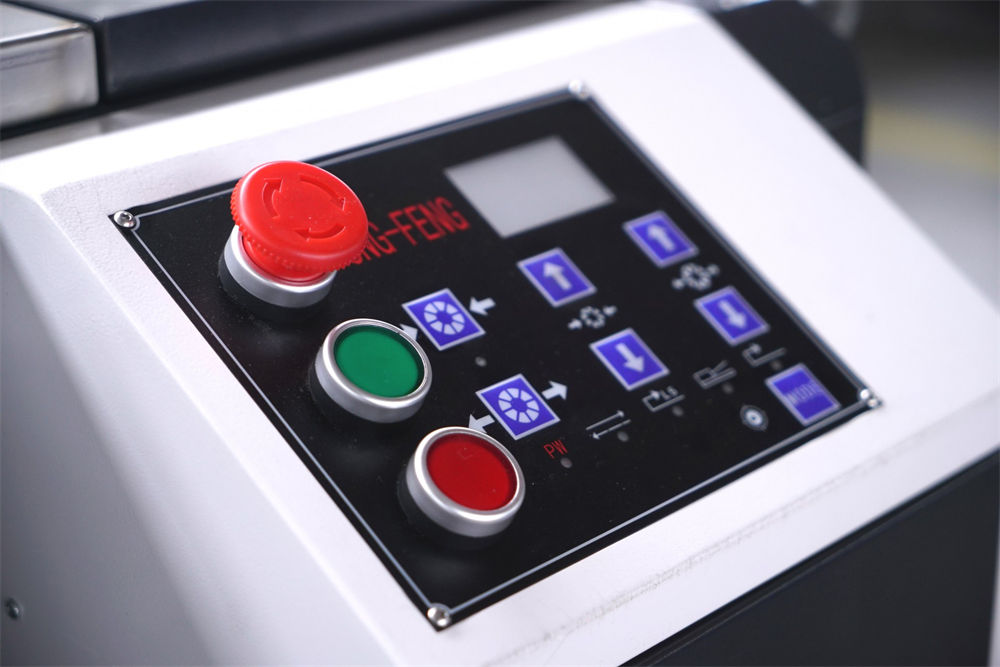

Control |
Digital Controlled Panel |
|
|
Noise Level |
50 dB(A) |
|
|
Protection Class |
IP54 |
|
|
Weight |
290kg |
|
|
L × W × H |
800 × 690 × 960mm |
|
|
Crimping dies |
Ø6 (1/4”) |
Length: 22mm |
|
Ø8 (5/16”) |
Length: 22mm |
|
|
Ø10 (3/8”) |
Length: 22mm |
|
|
Ø13 (1/2”) |
Length: 22mm |
|
|
Ø16 (5/8”) |
Length: 22mm |
|
|
Ø19 (3/4”) |
Length: 22mm |
|
|
Ø25 (1”) |
Length: 22mm |
|
|
Ø32 (1.1/4”) |
Length: 22mm |
|
