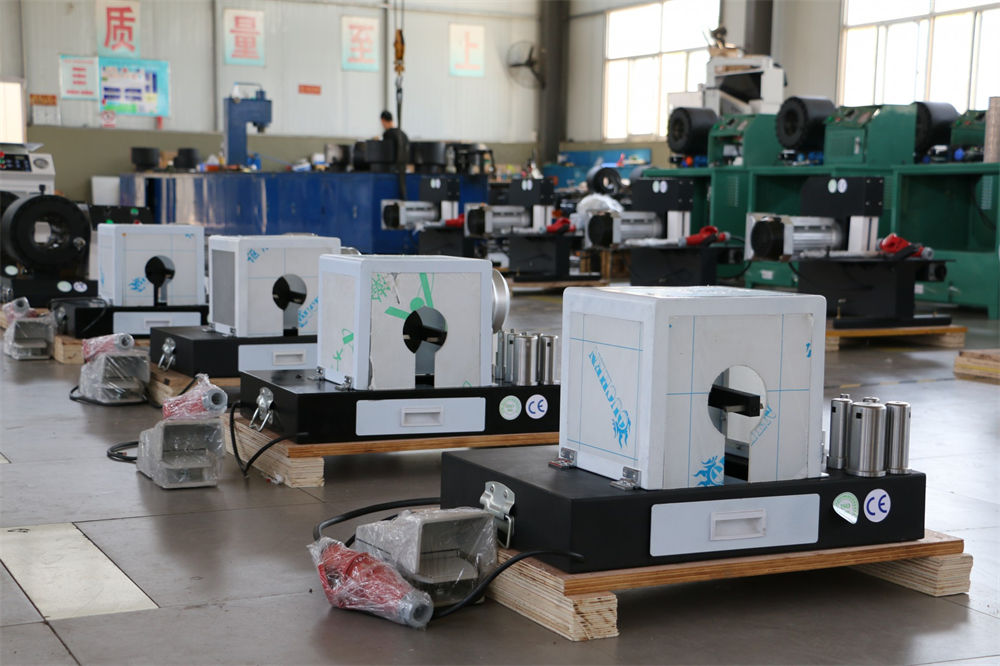

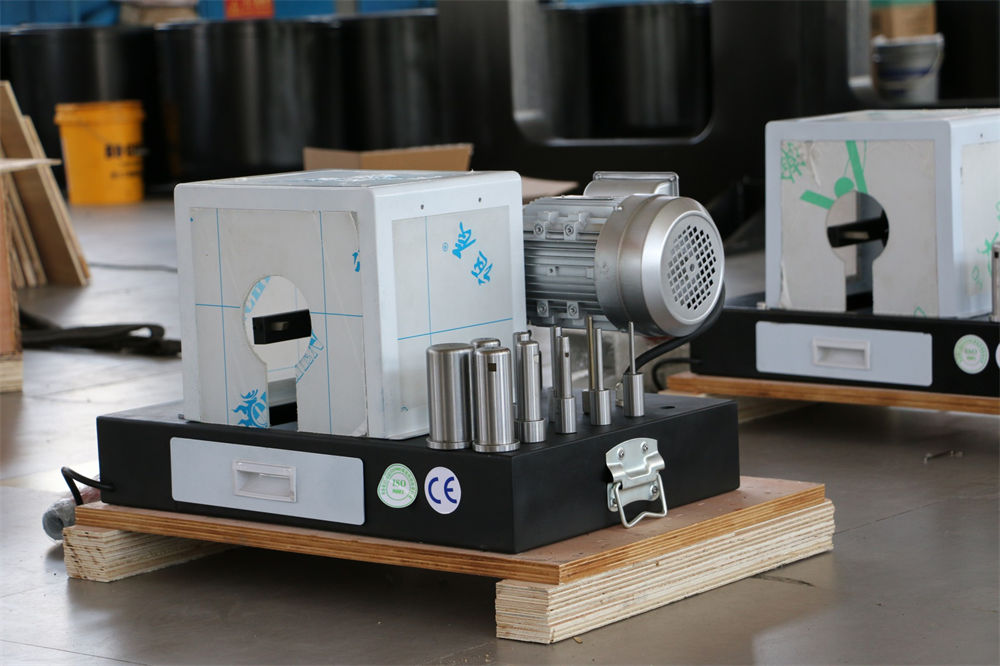

Hose Skiving Machine
YS51
Hose skiving machines designed for remove the peeling of hydraulic hoses outside or inside simultaneously, YS51 has the advantages of high efficiency, fast, safely and easy operating. The skiving capacity up to 2 Inch 4SP.
Key Advantages:
1.Efficiently, Fast, Safely. 2.Controlled by a foot pedal. 3.Internal & External Peeling. 4.Skiving Range: 1/4 Inch to 2 Inch.
Technical Specification:
|
Skiving Capacity |
1/4 Inch～2 Inch |
|
1 Braided Wire (1SN): 2 Inch |
|
|
2 Braided Wire (2SN): 2 Inch |
|
|
4 Spiral Wire (4SP, 4SH): 2 Inch |
|
|
Safety Shield |
Included |
|
Voltage |
220v～480v 1Ph / 3Ph |
|
Motor |
0.75 kw |
|
Mandrel |
10 pcs |
|
Inner Skiving Knife |
7 pcs |
|
Outer Skiving Knife |
2 pcs |
|
Weight |
45 kg |
|
L × W × H |
600 × 400 × 360mm |
