Heavy-Duty Hose Crimpers

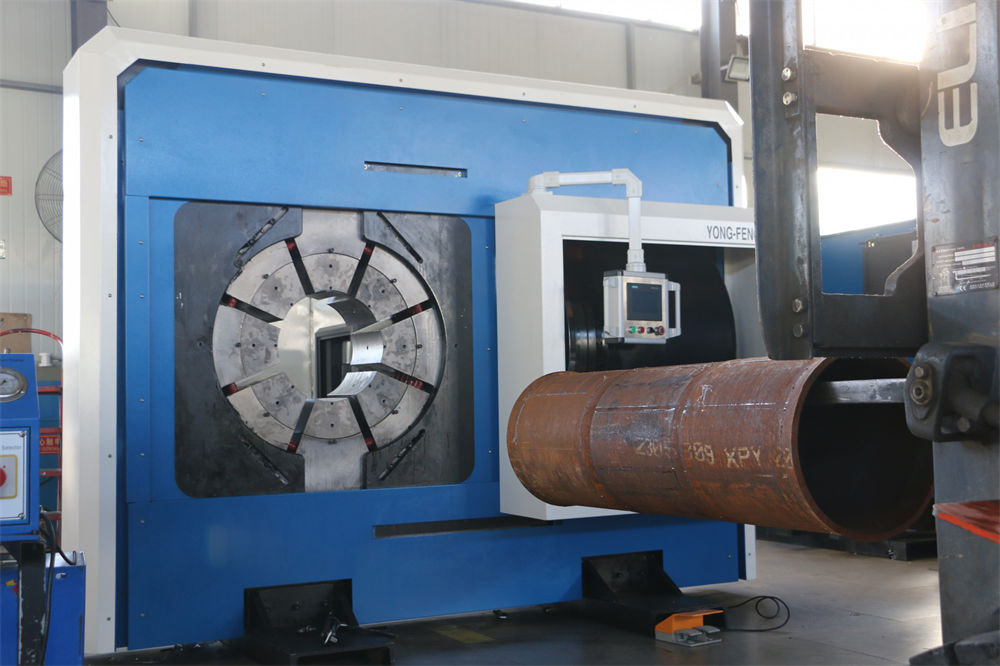

Y830
With 2000tons crimping force and 830mm crimping diameter, it is suitable for wide range of applications requiring large capacity in force and diameter. Y830 with 240mm long master dies provides long forming with single stroke especially in tube and pipe applications. Designed for industrial hose or composite hose purpose, it adopted the advanced Siemens Touch Panel for an higher crimping accuracy.
Key Advantages:
1.Siemens Touch Panel. 2.Reliable and durable. 3.For industrial & Composite hoses. 4.Max. Crimping up to 30 Inch. 5.High Crimping Accuracy. 6.Ultra-thin structure, Ultra-long moving distance.
Technical Specification:
|
Crimping Capacity |
10 Inch～30 Inch |
|
|
With Flanges: Up to 24 Inch |
||
|
Without Flange: Up to 30 Inch |
||
|
Max. Opening without dies |
830 mm |
|
|
Max. Moving Stroke |
+190 mm |
|
|
Master Dies Length |
240 mm |
|
|
Crimping Force |
2000T |
|
|
Voltage |
380v～480v 3Ph |
|
|
Motor |
15 kw |
|
|
Control |
Siemens Touch Panel |
|
|
Siemens HMI |
Included |
|
|
Siemens Industrial Control System |
Included |
|
|
Database Memory |
Included |
|
|
Pressure Control System |
Included |
|
|
Multi-language Selection |
Included |
|
|
Foot Pedal |
Double-acting |
|
|
Noise Level |
50 dB(A) |
|
|
Protection Class |
IP54 |
|
|
Crimping Unit: |
Size: 2980 x 1530 x 2360mm |
|
|
Weight: 13500kg |
||
|
Hydraulic Power Pack: |
Size: 850 x 800 x 1220mm |
|
|
Weight: 660kg |
||
|

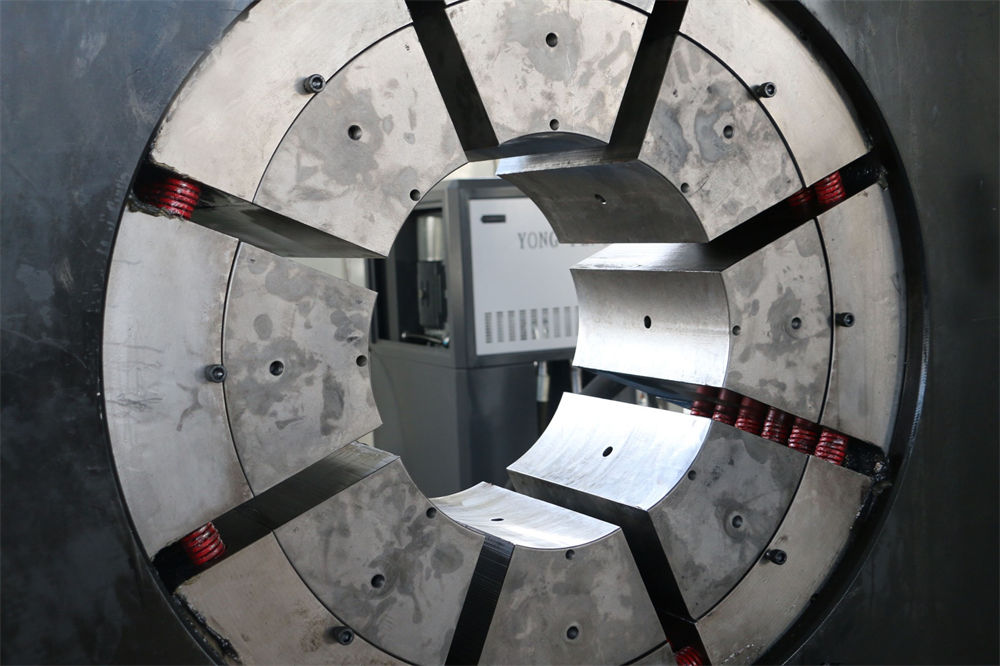

Adapter Dies |
||
|
Crimping dies |
Ø254 (10”) |
Length: 240mm |
|
Ø305 (12”) |
Length: 240mm |
|
|
Ø356 (14”) |
Length: 240mm |
|
|
Ø406 (16”) |
Length: 240mm |
|
|
Adapter dies |
||
|
Ø457(18”) |
Length: 240mm |
|
|
Ø508 (20”) |
Length: 240mm |
|
|
Ø559 (22”) |
Length: 240mm |
|
|
Ø609 (24”) |
Length: 240mm |
|
|
Ø660 (26”) |
Length: 240mm |
|
|
Ø711 (28”) |
Length: 240mm |
|
|
Ø762 (30”) |
Length: 240mm |
|
