Heavy-Duty Hose Crimpers
Y570

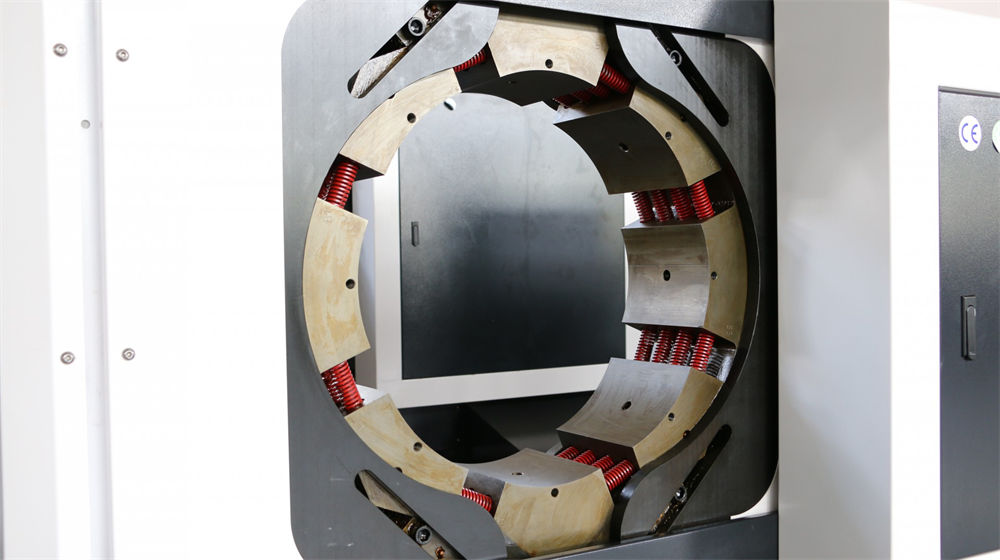

With 1500tons force and 570mm crimping diameter, it is suitable for wide range of applications requiring large capacity in force and diameter. Y570 with 240mm long master dies provides long forming with single stroke especially in tube and pipe applications. Designed for industrial hose or composite hose purpose, it adopted the advanced Siemens Touch Panel for higher crimping accuracy.
Key Advantages:
1.Siemens Touch Panel. 2.Reliable and durable. 3.For industrial & Composite hoses. 4.Max. Crimping up to 16 Inch. 5.High Crimping Accuracy 6.Ultra-thin structure, Ultra-long moving distance
Technical Specification:
|
Crimping Capacity |
4 Inch～16 Inch |
|
|
With Flanges: Up to 12 Inch |
||
|
Without Flange: Up to 16 Inch |
||
|
Max. Opening without dies |
570 mm |
|
|
Max. Moving Stroke |
+180 mm |
|
|
Master Dies Length |
240 mm |
|
|
Crimping Force |
1500T |
|
|
Voltage |
380v～480v 3Ph |
|
|
Motor |
11 kw |
|
|
Control |
Siemens Touch Panel |
|
|
Siemens HMI |
Included |
|
|
Siemens Industrial Control System |
Included |
|
|
Database Memory |
Included |
|
|
Pressure Control System |
Included |
|
|
Multi-language Selection |
Included |
|
|
Foot Pedal |
Double-acting |
|
|
Noise Level |
50 dB(A) |
|
|
Protection Class |
IP54 |
|
|
Crimping Unit: |
Size: 2250 x 850 x 1730mm |
|
|
Weight: 8500kg |
||
|
Hydraulic Power Pack: |
Size: 840 x 800 x 1230mm |
|
|
Weight: 660kg |
||
|
Crimping dies |
Ø101.6 (4”) |
Length: 150mm |
|
Ø127 (5”) |
Length: 150mm |
|
|
Ø153 (6”) |
Length: 200mm |
|
|
Adapter Dies |
||
|
Ø203 (8”) |
Length: 200mm |
|
|
Ø254 (10”) |
Length: 240mm |
|
|
Ø305 (12”) |
Length: 240mm |
|
|
Ø406 (16”) |
Length: 240mm |
|
