Heavy-Duty Hose Crimpers

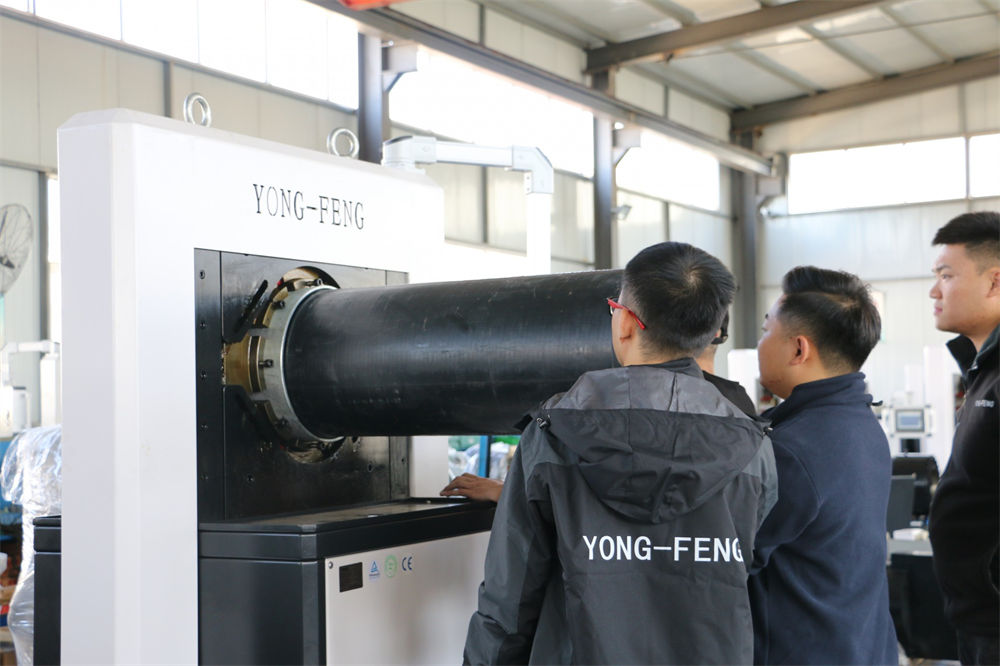

Y360
Designed for industrial hose or composite hose purpose, Y360 is the flagship of the Y-series with 1000tons force and 360mm crimping diameter, it is suitable for wide range of applications requiring large capacity in force and diameter, Y360 with 125mm long master dies provides long forming with single stroke especially in tube and pipe applications.
Key Advantages:
1.Siemens Touch Panel. 2.Reliable and durable. 3.For industrial & Composite hoses. 4.Max. Crimping up to 10 Inch. 5.High Crimping Accuracy 6.Ultra-thin structure, Ultra-long moving distance
Technical Specification:
|
Crimping Capacity |
2 Inch～10 Inch |
|
|
With Flanges: Up to 8 Inch |
||
|
Without Flange: Up to 10 Inch |
||
|
Max. Opening without dies |
360 mm |
|
|
Max. Moving Stroke |
+120 mm |
|
|
Master Dies Length |
125 mm |
|
|
Crimping Force |
1000T |
|
|
Voltage |
380v～480v 3Ph |
|
|
Motor |
5.5 kw |
|
|
Control |
Siemens Touch Panel |
|
|
Siemens HMI |
Included |
|
|
Siemens Industrial Control System |
Included |
|
|
Database Memory |
Included |
|
|
Pressure Control System |
Included |
|
|
Multi-language Selection |
Included |
|
|
Foot Pedal |
Double-acting |
|
|
Noise Level |
50 dB(A) |
|
|
Protection Class |
IP54 |
|
|
Crimping Unit: |
Size: 1160 × 1030 × 1950mm |
|
|
Weight: 2700kg |
||
|
Hydraulic Power Pack: |
Size: 840 × 800 × 1130mm |
|
|
Weight: 660kg |
||
|
Crimping dies |
Ø51 (2”) |
Length: 125mm |
|
Ø64 (2.1/2”) |
Length: 125mm |
|
|
Ø76 (3”) |
Length: 125mm |
|
|
Ø101.6 (4”) |
Length: 125mm |
|
|
Adapter Dies |
||
|
Ø127 (5”) |
Length: 125mm |
|
|
Ø153 (6”) |
Length: 125mm |
|
|
Ø203 (8”) |
Length: 125mm |
|
|
Ø254 (10”) |
Length: 125mm |
|
